C01 / PRODUCT CONFIGURATIONS

Custom Solid Surface
Reception Desks

Choose the form.
Confirm the working space.

Compare straight, curved and return references. Resolve equipment, usable dimensions and site access for the selected desk.

Review Your Project↗Browse Desk References→
Product reference: Round White Solid Surface Reception Desk for Office Lobby Projects.
Product reference
YHS PROJECT LOGIC / RECEPTION DESKS

Form×Working space×Equipment×Site route

C02 / PRODUCT REFERENCES

Find a starting point.
Then test the working plan.

Browse by visible form. Use a selected reference to start the project review.

All references Straight Curved Return / wraparound

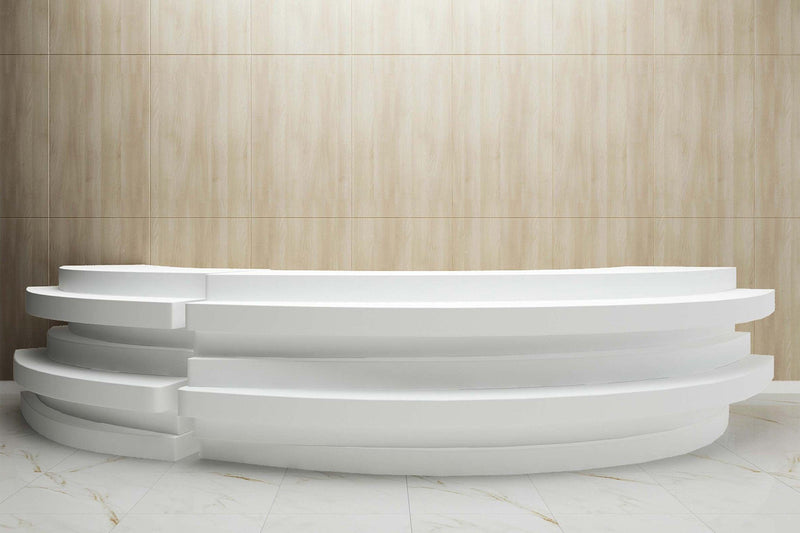

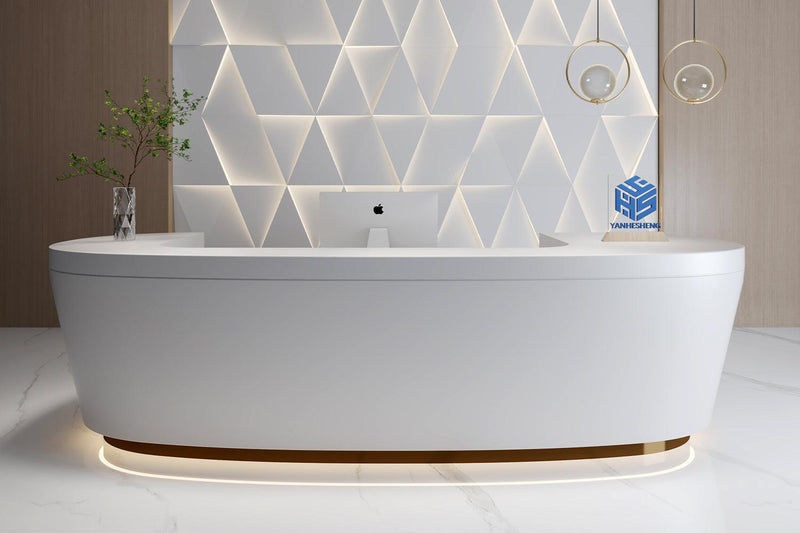

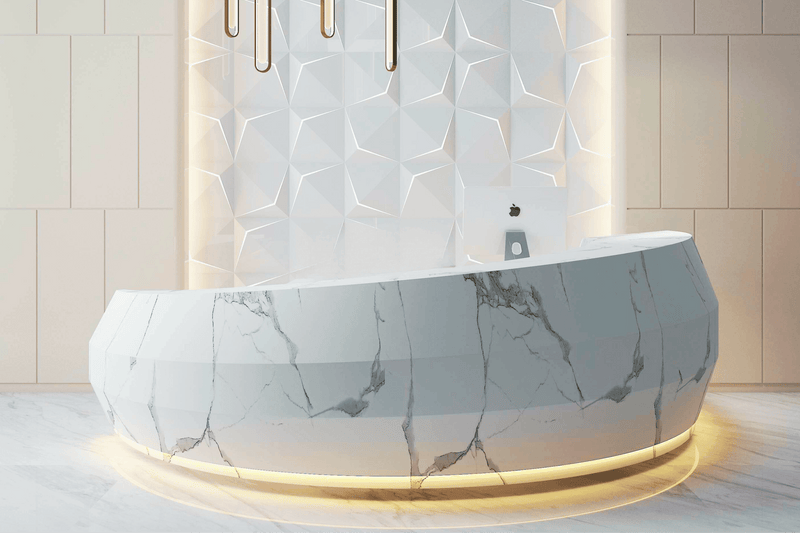

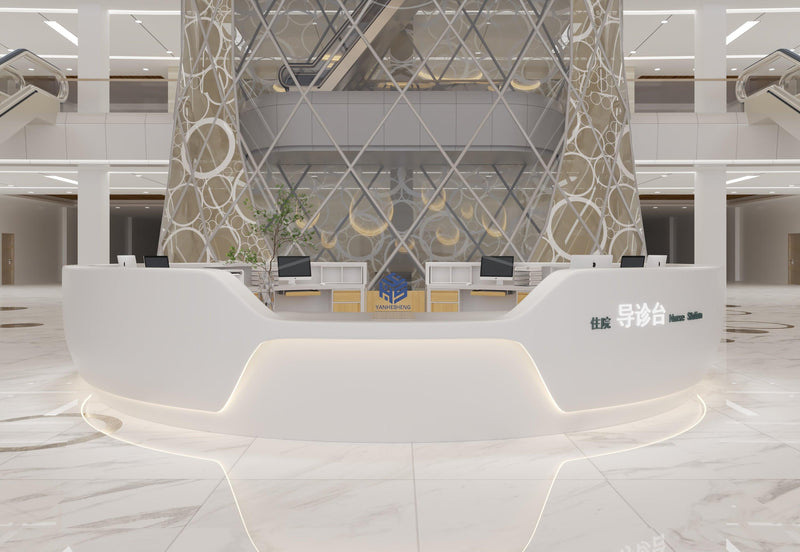

Current desk references · 27 productsWorking capacity requires project review

Select a configuration to compare its working plan. Confirm the form, working dimensions, equipment and construction for your selected product.

C03 / CONFIGURATION + SELECTION

The outside shape
does not define the inside.

Choose a form, then resolve the working requirements that shape cannot prove.

Straight reception desk

Start here when a linear public frontage fits the arrival and working plan.

  • 01Usable depth + equipment footprint
  • 02Occupied positions + open storage
  • 03Staff entry + shared-equipment access
Browse all desk references→

Multi-station is capacity. Modular is a build/delivery strategy. Neither is a separate shape.

L — overallD — usable01020304PUBLIC FRONTAGE
01Occupied staff zone02Open storage envelope03Staff/service entry04Equipment + handover
Coordination concept · L and D are variables, not specified dimensions. Confirm the actual geometry against the selected project.
C04 / CRITICAL INTERFACES

Check the interfaces
inside the selected form.

What must be confirmed before this can be manufactured correctly?

working-side coordination concept: monitor, cable entry, joint and support.
Working-side concept
INTERFACE MAP / 01–04Confirm in the shop drawing
01Monitor mount + usable depth

Overlay the monitor arm, keyboard zone and equipment footprint within the usable worktop depth.

Confirm the model before drilling.
02Cable entry + removable access

Check the grommet, cable path, cabinet clearance and panel removal together.

Access must remain after storage is installed.
03Surface joint + contact edge

Locate the joint against the selected form, module breaks, edge profile and finish.

Approve the visible detail before release.
04Internal support + knee space

Review support, open drawers and equipment bays within the occupied working space.

Support must preserve the approved working clearance.

Coordination concept. Actual equipment, support, joints and service provisions follow the approved project detail.

C05 / BUILD ANATOMY

Surface. Support. Service.

The visible face and supporting assembly must be resolved together.

01020304
01Solid-surface shell02Local backing03Project support04Removable panel
Assembly concept · Open working bay illustrated. Backing, support and connections are project-specific.
01

Surface + visible details

Approve the material sample, edge profile and joint position. Finish and pattern choices affect the visible detail.

02

Backing + support zones

Select backing and support for the actual span, loading and fixing. Preserve knee space and equipment bays.

03

Storage + service access

Coordinate cabinet opening, panel removal and equipment replacement before the supporting assembly is released.

For the selected desk, request the approved detail and relevant checks.Review the project record checklist →
C06 / PROJECT RISK MAP

Resolve the decisions
that become site changes.

Keep the risk, consequence, control point and evidence connected.

01Overall length mistaken for usable capacity
Risk

A desk is selected by outer dimensions without an occupied working plan.

Project consequence

Staff positions, open drawers and equipment can conflict.

YHS control point

Overlay the working positions, usable depth, storage travel and equipment before fixing dimensions.

Evidence required

Dimensioned working plan + equipment footprints.

02Outer curve mistaken for working space
Risk

The outside radius is chosen without inner geometry or staff entry.

Project consequence

The desk may restrict monitor reach or internal circulation.

YHS control point

Approve the inner radius, usable depth and entry with occupied positions and open storage.

Evidence required

Inner working plan + key sections.

03Lighting hides a service problem
Risk

Drivers and connections are placed after storage and the face are fixed.

Project consequence

Replacement access may require dismantling the finished frontage.

YHS control point

Locate the lighting channel, driver and removable panel before surface release.

Evidence required

Lighting detail + access drawing + electrical scope.

04Module breaks follow crate size alone
Risk

Joints are fixed without the building route and visible finish.

Project consequence

A module may not reach the floor or a joint may interrupt the intended face.

YHS control point

Review packed size, weight, joint appearance and assembly order as one decision.

Evidence required

Module/joint plan + route survey + approved finish detail.

Agree the approval owner and release revision for each control point. The listed records are required evidence, not records supplied by these concept illustrations.

C07 / BEFORE WE BUILD

Freeze the selected detail.
Then release manufacture.

These are production-release decisions. You can start an initial review before they are all complete.

01

Form + quantity

Selected reference, quantity, working positions and reception task.

02

Usable dimensions

Overall dimensions, worktop depth, inner radius and staff entry.

03

Equipment + openings

Final models, mounting/cut-outs, service clearance and cable entry.

04

Finish + details

Approved sample, edge, joints, logo and lighting where required.

05

Storage + support

Drawer travel, equipment bays, support/fixing and removable panels.

06

Modules + route

Module joints, packed dimensions/weights and installation responsibility.

Agree the approval owners.

Project team: site, equipment and finish approvals. Furniture scope: fabrication detail and module plan. Site trades: utilities, handling and installation. Confirm the actual responsibilities in the project scope.

DELIVERY IS A DESIGN INPUT

A desk that fits the room
must reach the room.

Plan module breaks around the entire building route, joint appearance and site assembly sequence.

01 / Ground floor + receiving

Confirm unloading responsibility, door openings, corridor turns and the final room approach against packed size and gross weight.

02 / Upper floors + elevator

Provide clear door width/height, cabin width/depth/height and rated load. Include the handling equipment in the route review.

03 / Stairs + turning space

If stairs are required, provide clear stair width, landings, turning/corner dimensions and headroom. Agree handling limits, method and responsibility.

04 / Site assembly + installation window

Agree module order, fixing, local joint work, utilities connections and surface protection with the site team.

C08 / READY TO QUOTE

Choose a reference.
Start with what you have.

Share a product reference or sketch and the reception task. Identify the equipment and site questions that are still open.

Review Your Project↗Review the record checklist→

Final equipment and production details can be resolved during project review.

ENOUGH TO START AN INITIAL REVIEW
  • Reference image, sketch or available drawing
  • Application + approximate size / quantity
  • Project location + receiving floor
  • Target installation date + known constraints
What must be confirmed before production?

Approved drawings and revision; actual dimensions; material/finish; equipment and utilities; module and packing plan; site access and installation responsibilities.

Initial estimates should identify assumptions and exclusions. Fabrication follows the confirmed project scope.
