Bank Furniture Solutions/ Bank Service Counters
C01 / CUSTOM BANK SERVICE FURNITURE

Bank Service
Counters

Choose the service position.
Confirm the working envelope.

Compare staffed counters, advisory desks and selected-device surrounds. Resolve equipment, handover and service access within the available footprint before fixing the furniture form.

Explore Counter ReferencesCompare Configurations

Defined furniture configuration. Project-specific equipment and details.

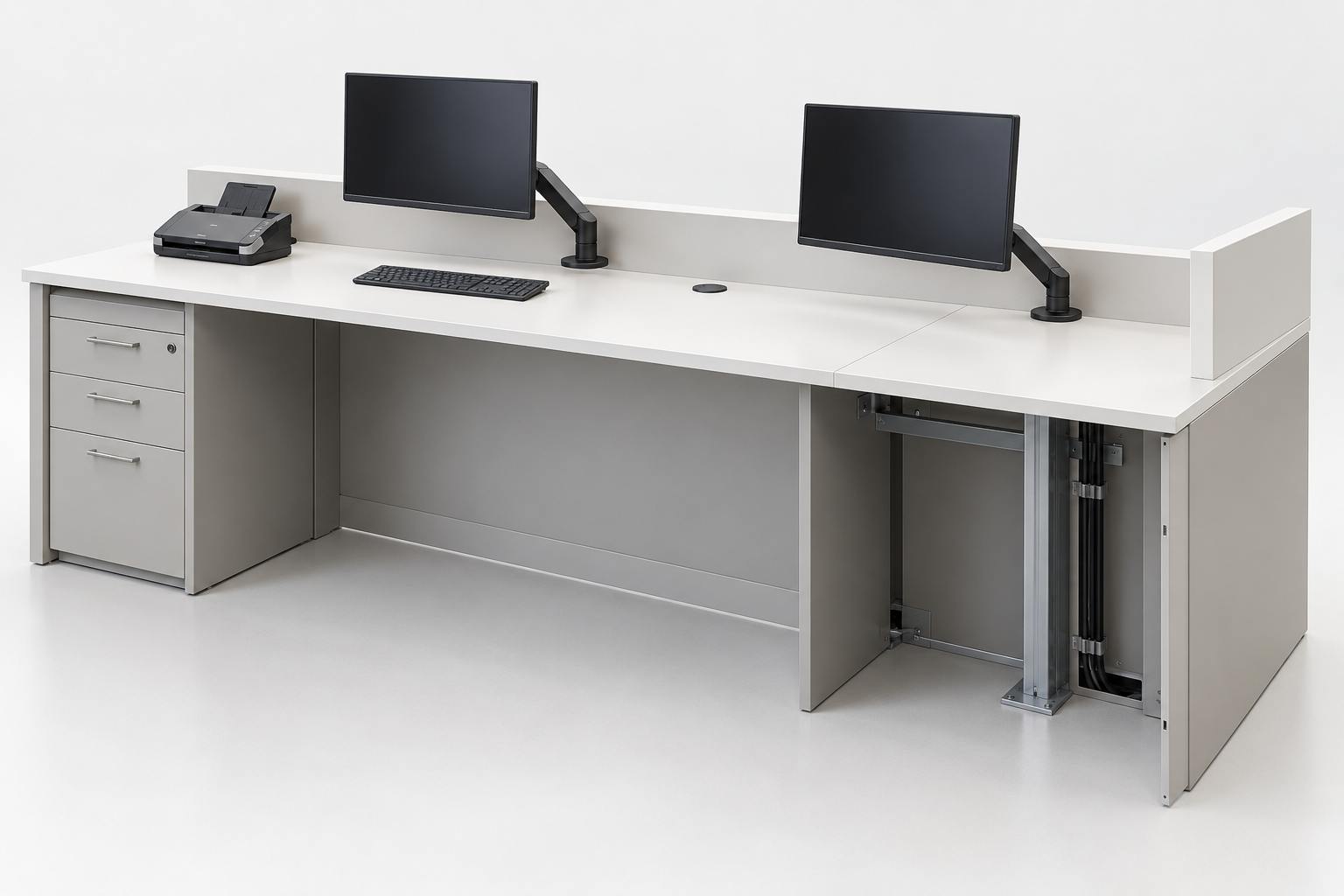

Illustrative working-side counter assembly, not a listed product or completed bank case.
Working-side assembly concept

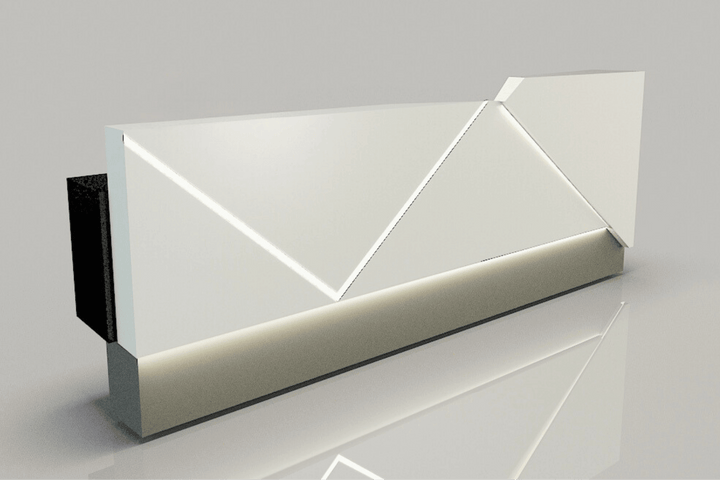

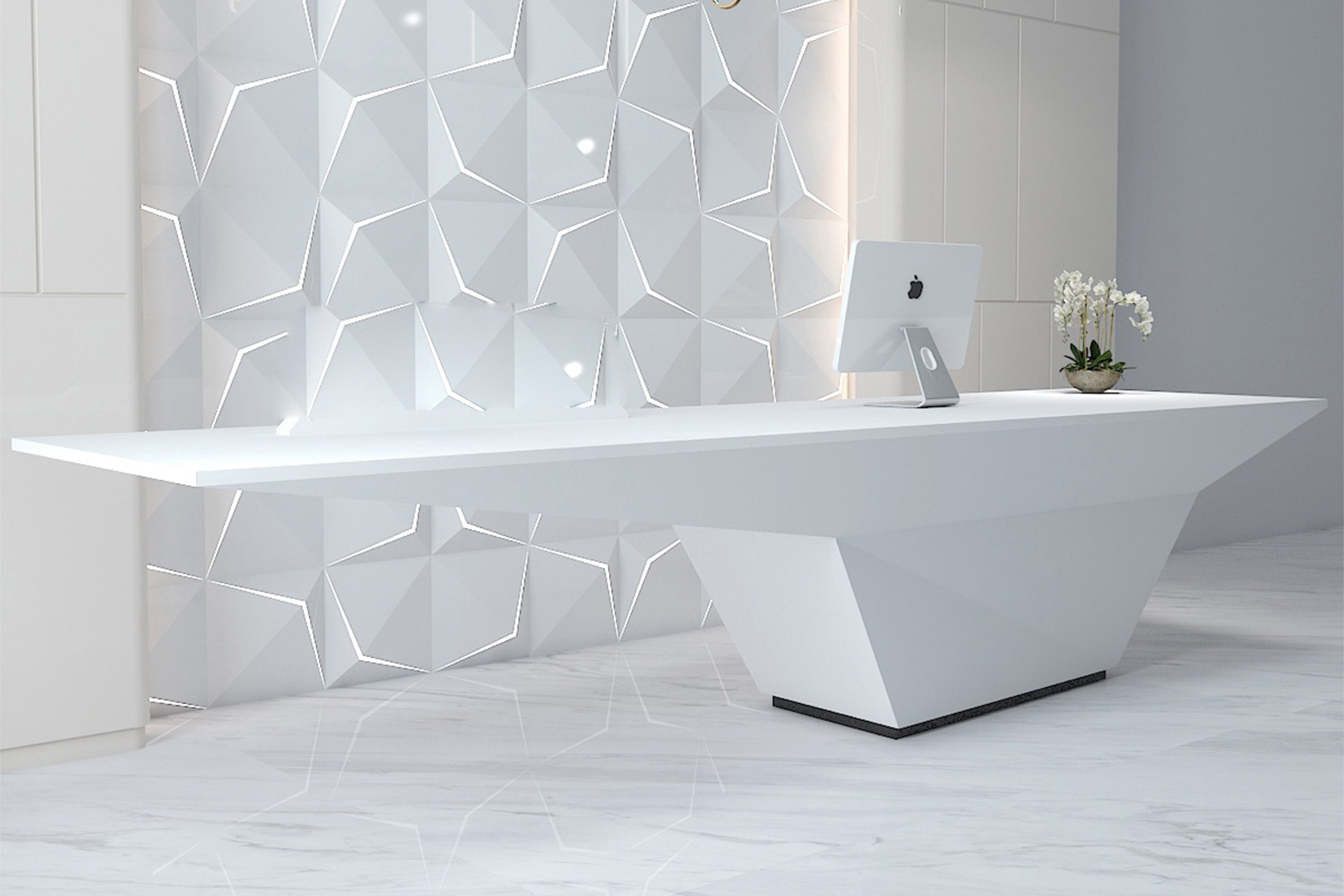

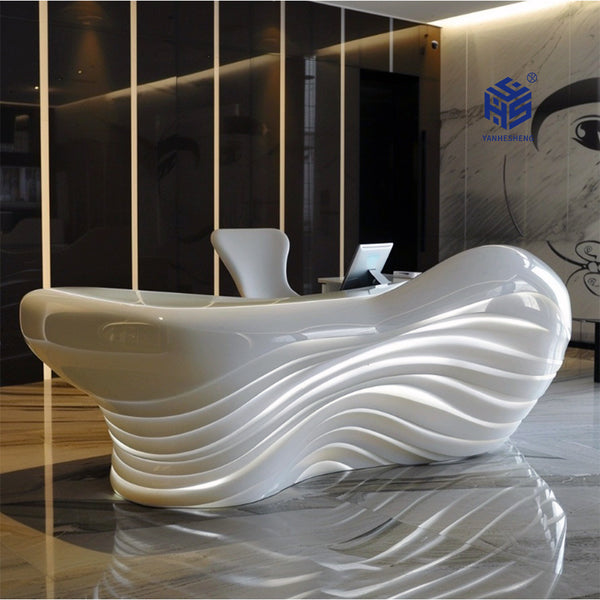

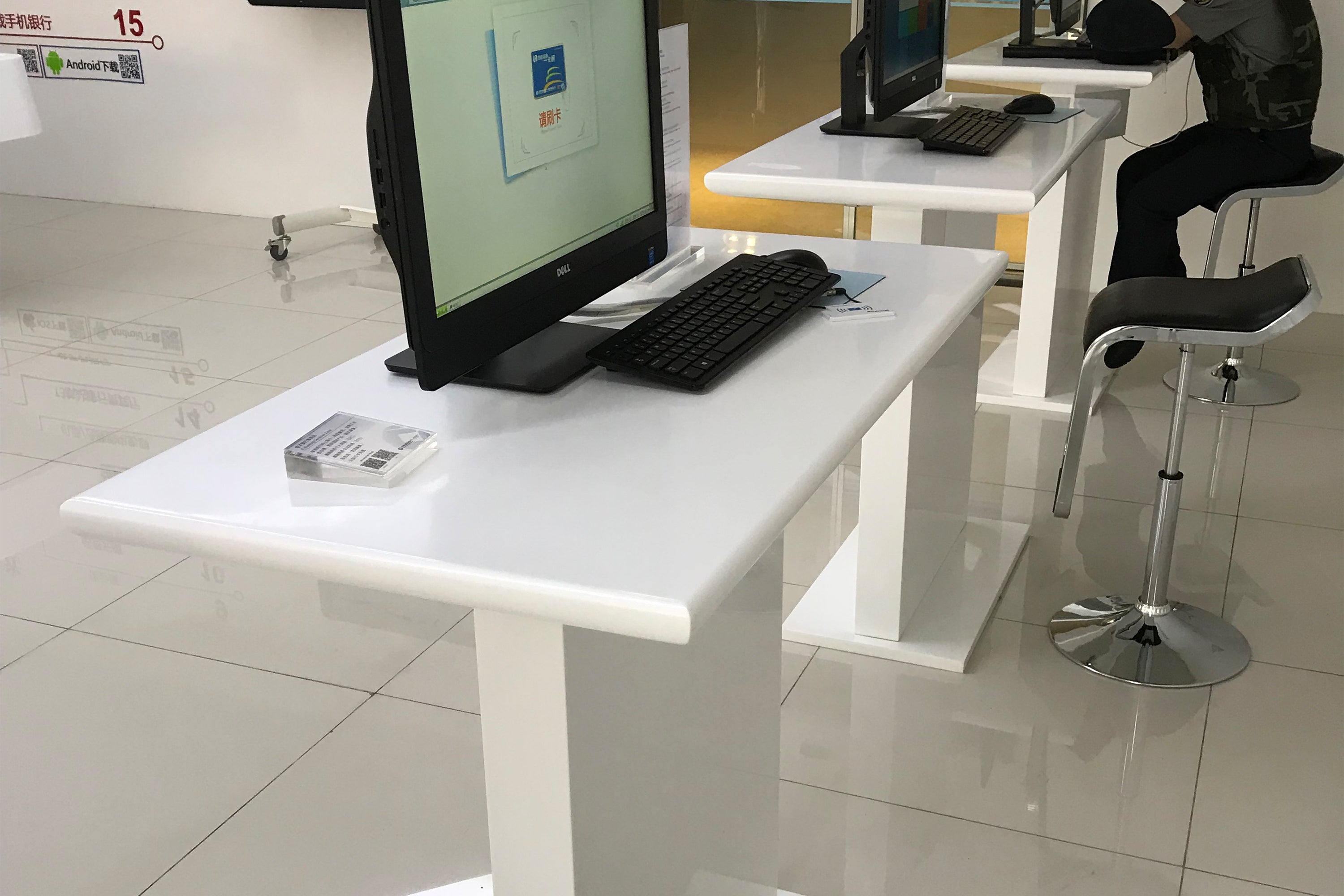

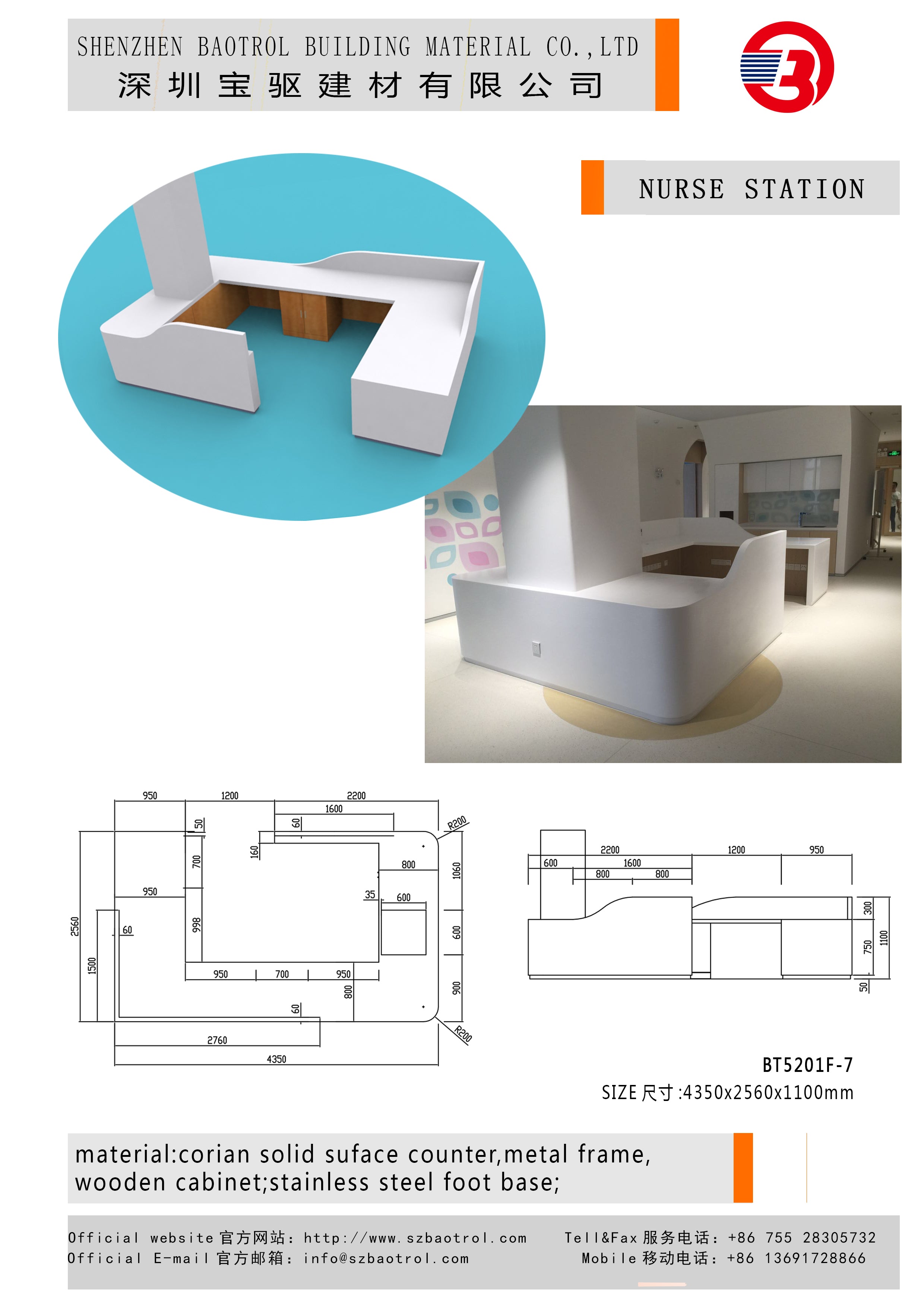

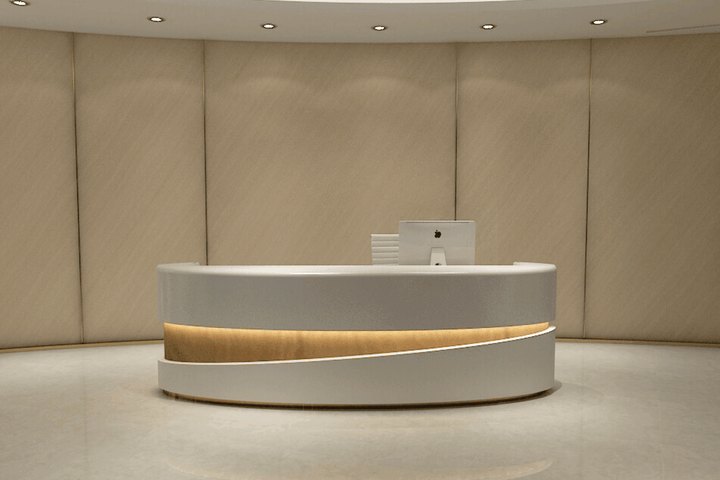

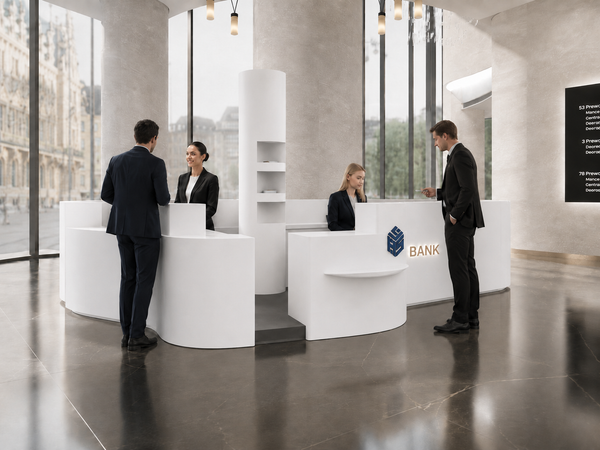

C02 / NATIVE PRODUCT REFERENCES

Find a starting point
for your branch.

Use a reference to begin the discussion. Confirm its actual service role and furniture scope against your operating brief.

DESIGN REVIEW / SOURCE DATA SNAPSHOT

10 source items retained. Three mismatched media sets are held; other service roles and supply scopes require confirmation.

1–8 / 10

Existing catalog names are shown for review. They do not establish verified bank use, equipment compatibility or security performance. Confirm the intended service, device interfaces and specialist scope before selecting an option.

C03 / TASK · FORM · CAPACITY

Choose the task.
Then plan each position.

Straight or curved describes form. One position or a run describes capacity. Neither defines the device or service scope.

Layout concept · not to scale
01

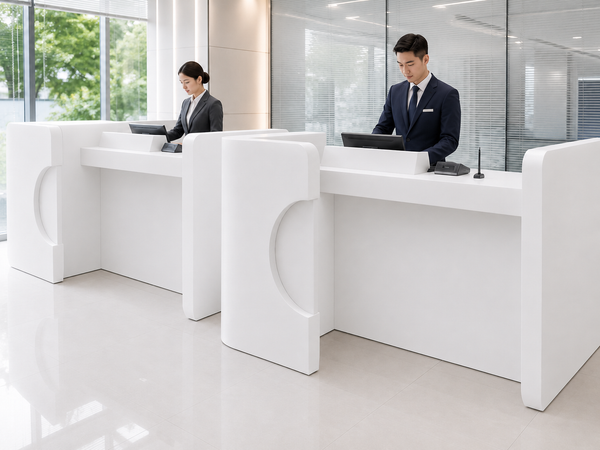

Staffed service counter

Define occupied staff positions, document exchange and selected devices before setting counter length.

Confirm:Position count, usable depth and drawer travel.
Layout concept · not to scale
02

Seated advisory desk

Make the document-sharing area, screen orientation and customer approach work within the consultation setting.

Confirm:Reach, knee space, storage and sightlines.
Layout concept · not to scale
03

Selected-device surround

Shape the furniture around the approved hardware and the route needed to connect, service and remove it.

Confirm:Vendor envelope, service side and base interfaces.

A transaction opening, specified glazing or a lowered service section is a project requirement to resolve separately. Furniture photographs do not establish the relevant performance.

C04 / SELECTION + TRADE-OFFS

Similar frontage.
Different working requirements.

Compare the constraint as well as the appearance. Resolve the inside before fixing the outside.

ConfigurationStart here whenResolve first · compare if constrained
Staffed service counterDocuments and selected devices are used at one or more staffed positions.Overlay staff, devices, handover and opening drawers. If they compete, compare position spacing, storage location or opening direction before extending the run.
Seated advisory deskThe task involves seated exchange and shared information.Plot reach and screen sightlines. If the footprint cannot support the brief, compare screen orientation, storage placement or the consultation location with the operator.
Selected-device surroundThe bank has selected hardware requiring a furniture surround.Use its complete service envelope. If rear access is restricted, compare an approved alternative service orientation or revised furniture footprint with the device supplier.
C05 / CONFIGURATION INTERFACES

Installed space is only
part of the requirement.

Check what must be used, opened and replaced while the service position is occupied.

Illustrative working-side assembly showing a monitor mounting point, cable entry, top joint and exposed supporting bay.
Working-side concept
01–04 / INTERFACE MAPIllustrative assembly · project-specific details
  1. 01

    Mounting + document exchange

    Plot the selected mount, keyboard and scanner where applicable. Keep the handover zone usable; confirm fixing and device footprints before cutting.

  2. 02

    Connections + removable access

    Allow for plugs and cable bends as well as the device body. Check that panels can be removed without blocking drawers or the equipment replacement route.

  3. 03

    Contact edge + module joint

    Compare joint positions with occupied staff bays and the handover area. Agree the edge and sample with the module split on the same furniture detail.

  4. 04

    Support + usable service bay

    Locate the selected support around knee space, storage and device loading. A visible furniture bay does not prove compatibility with an unspecified device.

Illustrative assembly. Devices and internal construction are project-specific. YHS’s quoted furniture scope does not automatically include equipment, banking software, specialist barriers or commissioning.

C06 / FINISH · SUPPORT · MODULE

Specify the surface.
Resolve the furniture around it.

A finish change may affect the edge, joint and support detail. Confirm those decisions together.

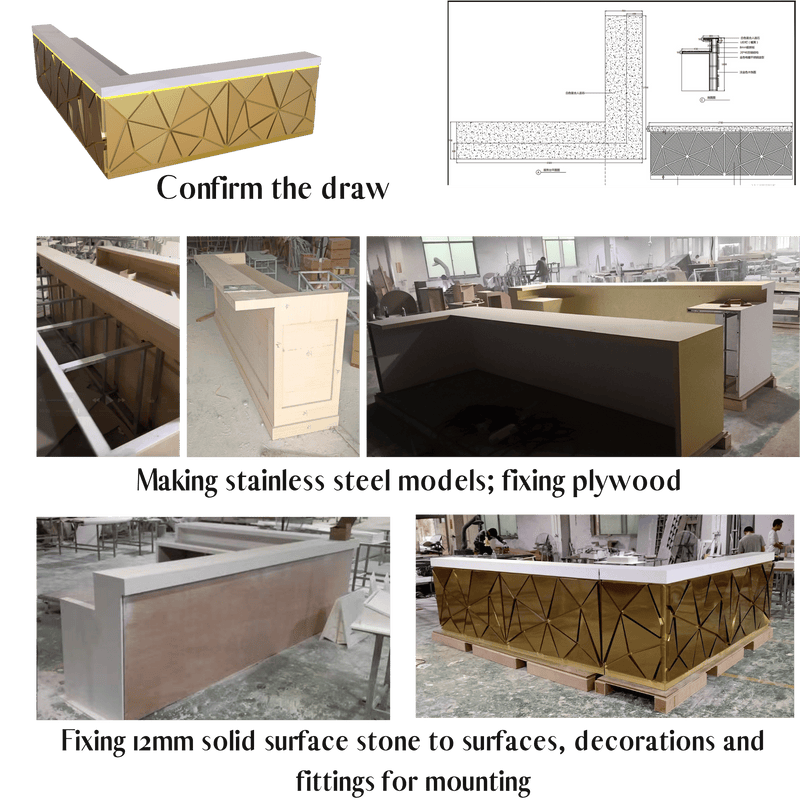

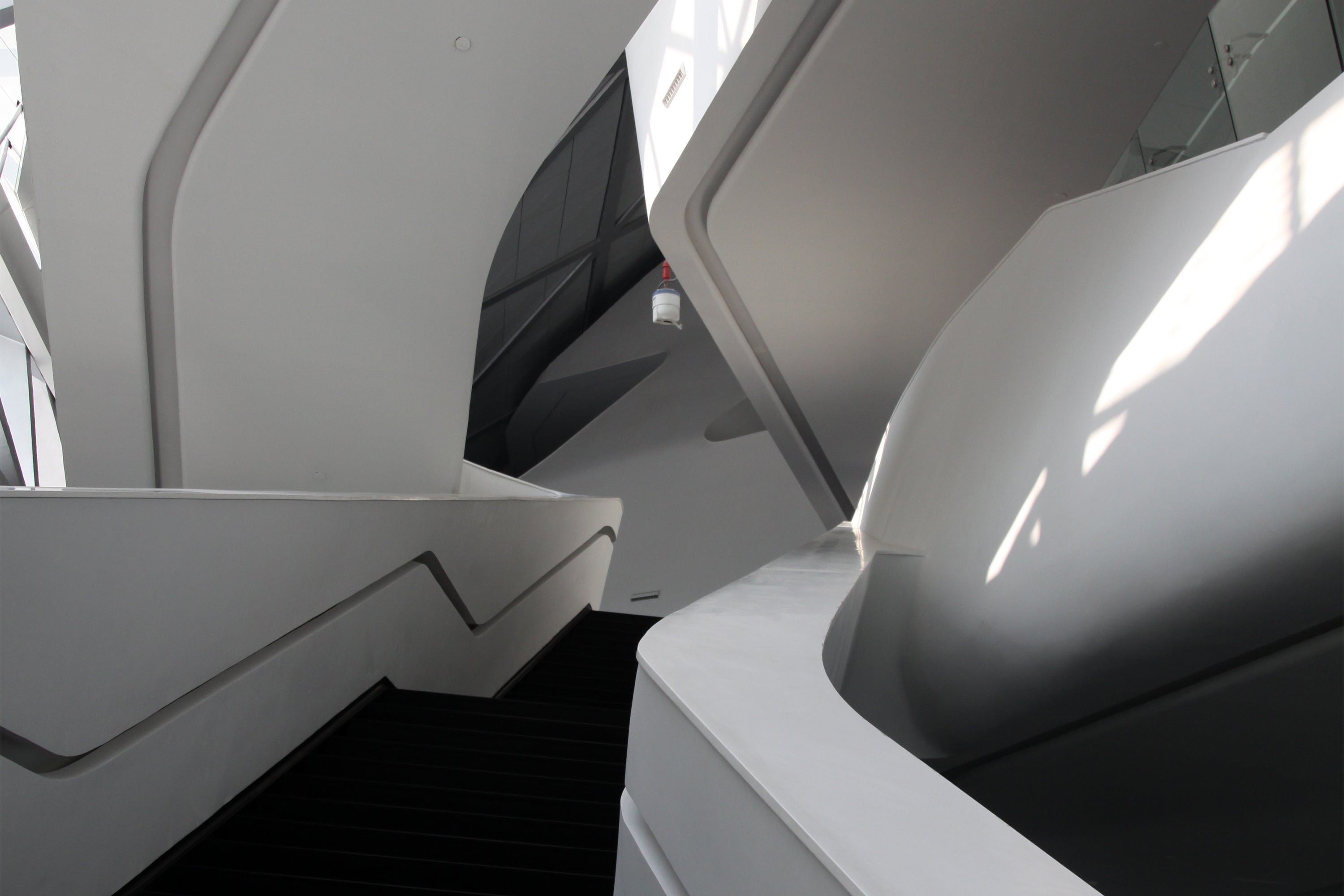

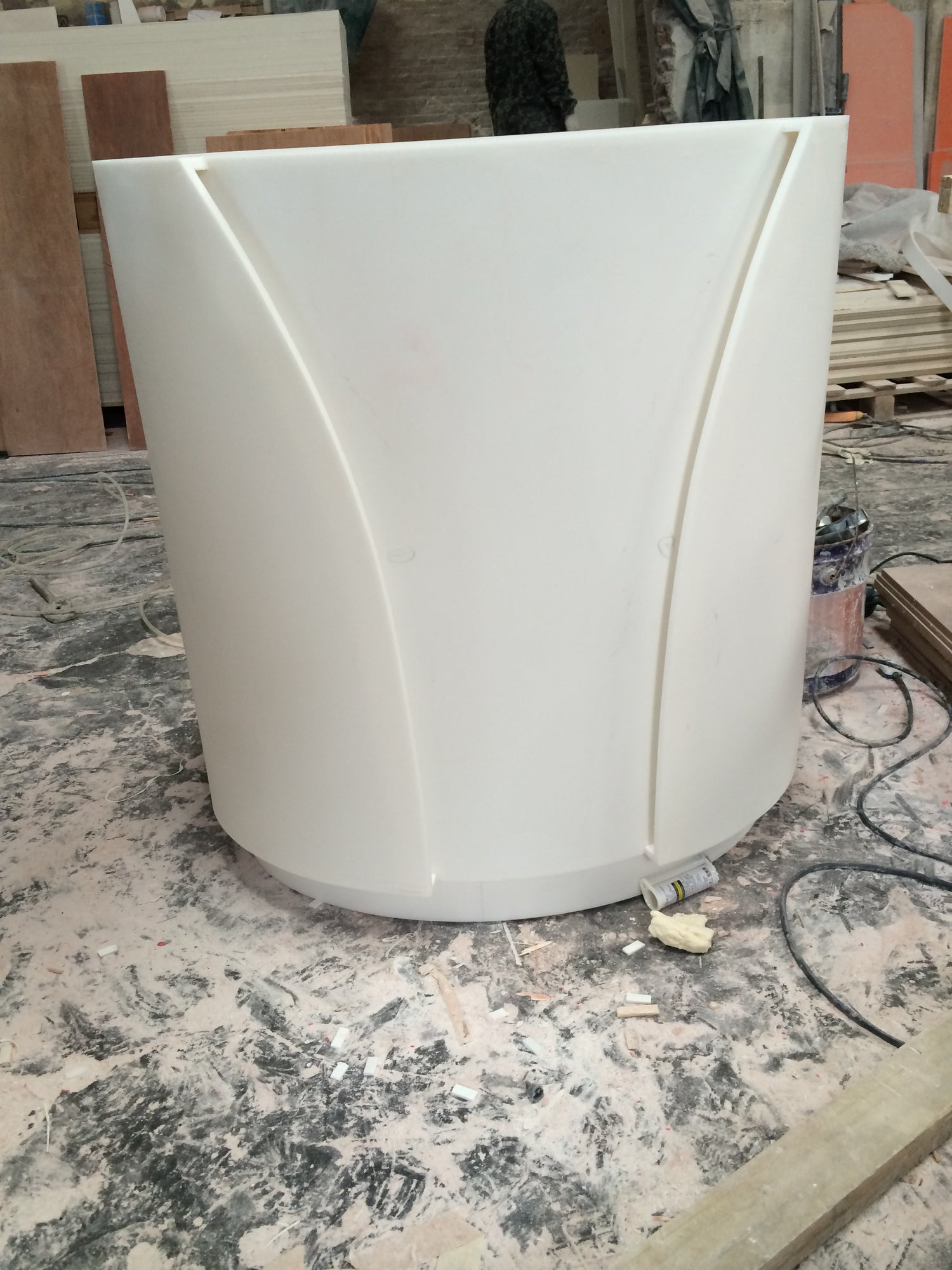

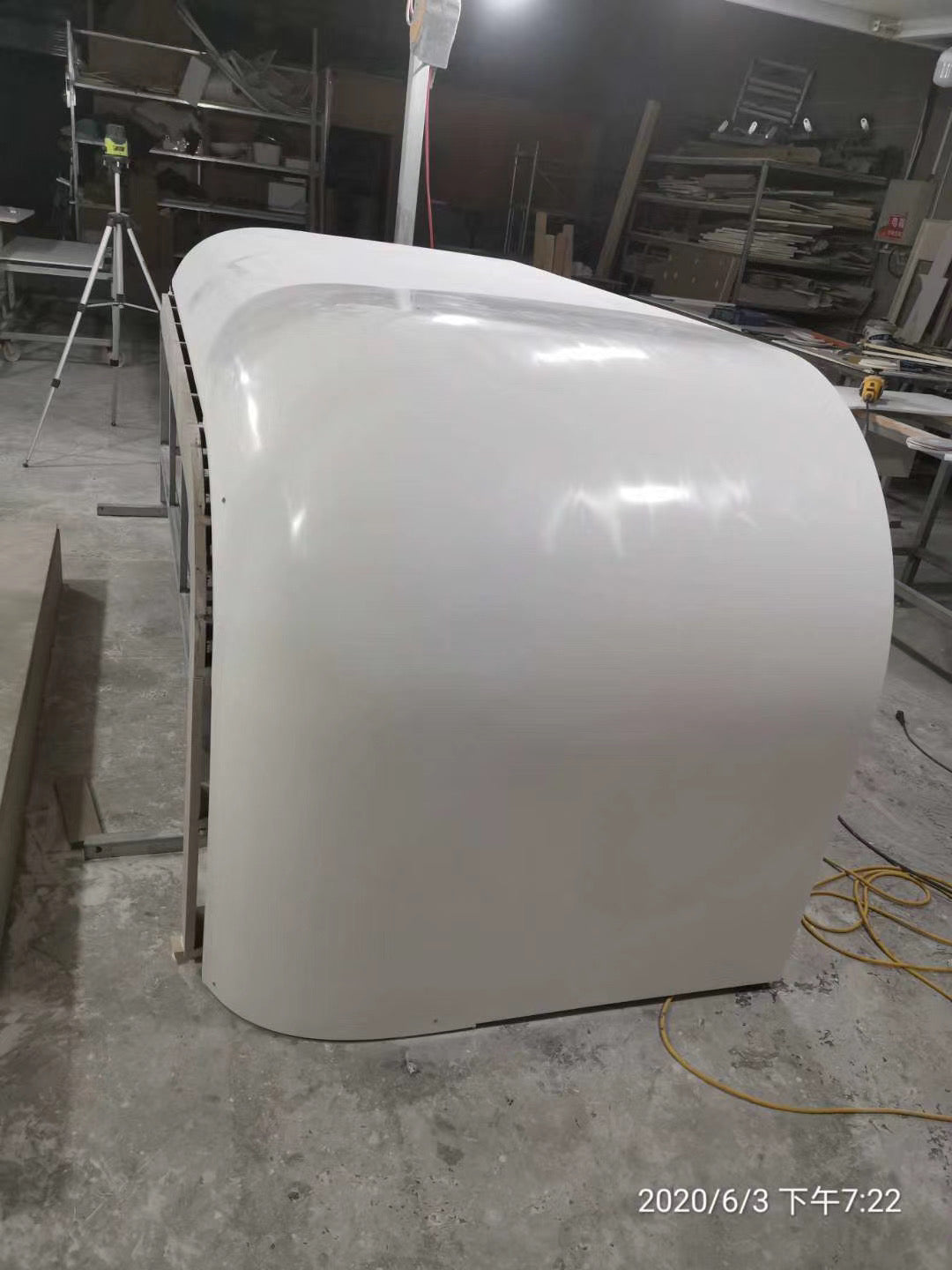

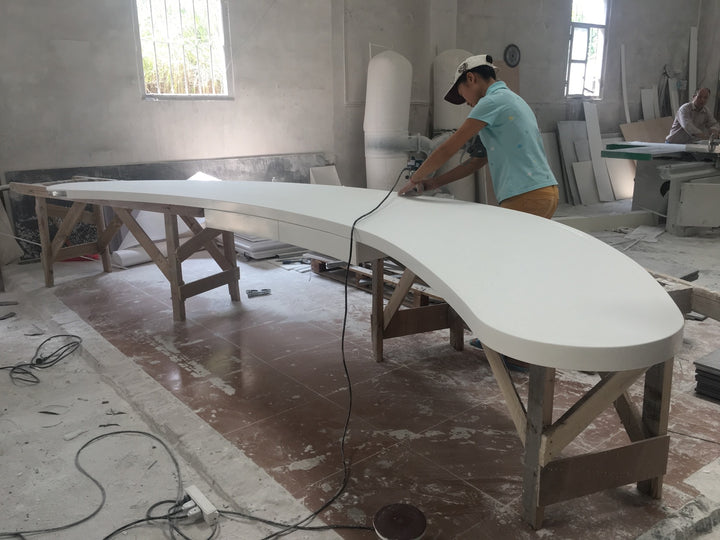

General solid-surface finishing reference, not the selected counter.
General workshop reference
01 / VISIBLE SURFACE

Approve the edge with the sample.

Confirm the material reference, sheen, contact edge and visible joint. Any illuminated or patterned finish requires its own detail.

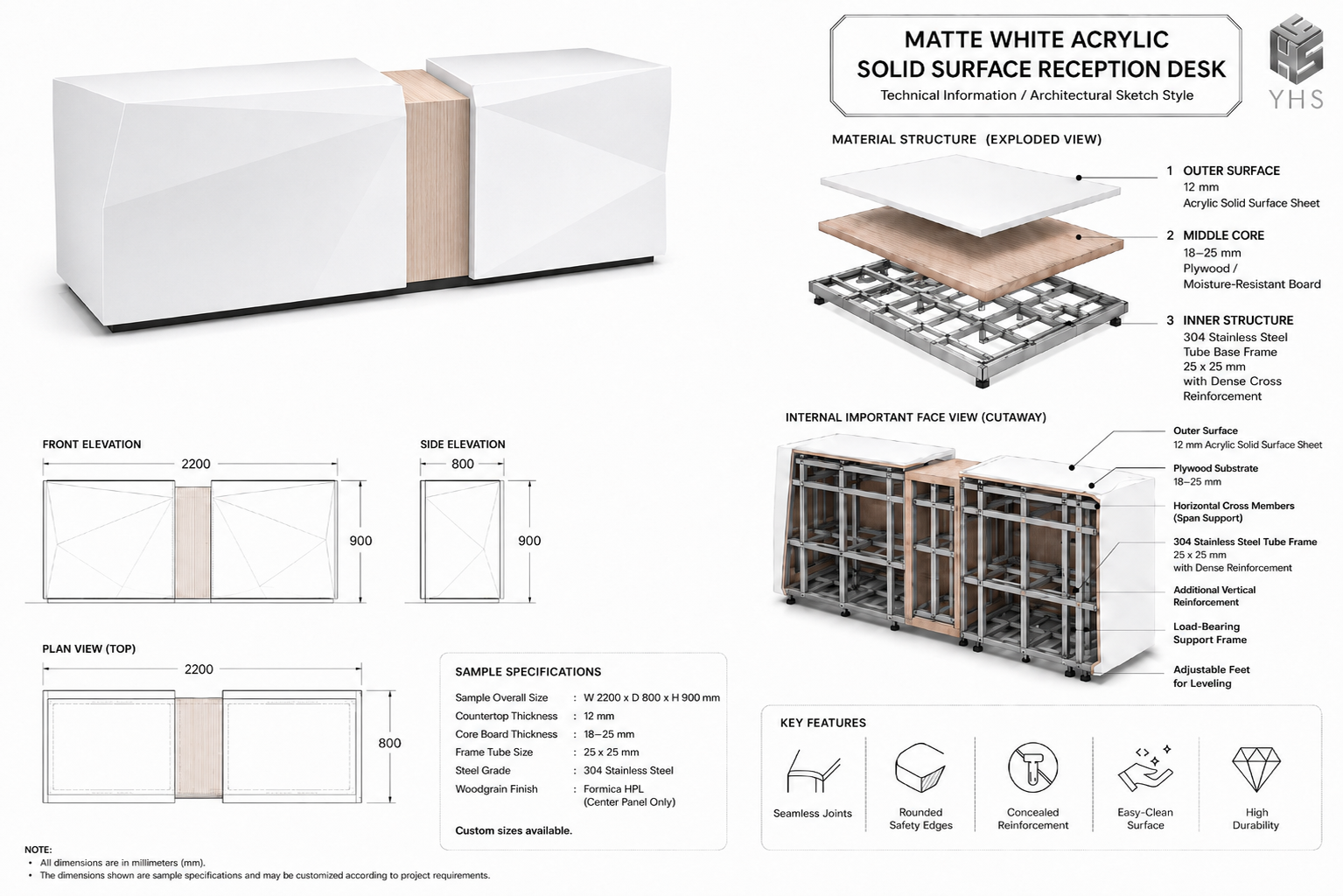

Illustrative assembly · no fixed build-up is implied.
  • 01Solid-surface finish
  • 02Selected backing / substrate
  • 03Project-specific support
  • 04Equipment + service cavity
Illustrative assembly · no fixed build-up is implied.
02 / SUPPORTING ASSEMBLY

Keep the space below usable.

Show the project-selected substrate and reinforcement. Review knee space, storage openings and equipment access together.

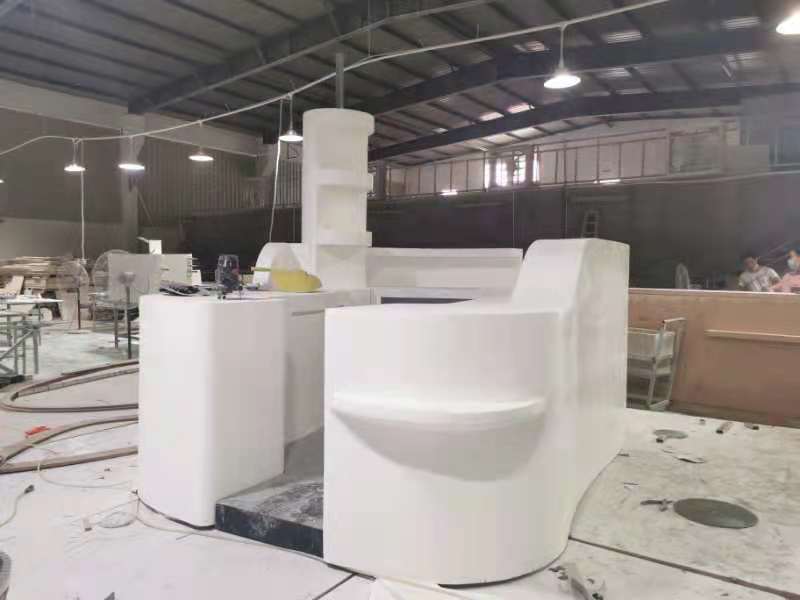

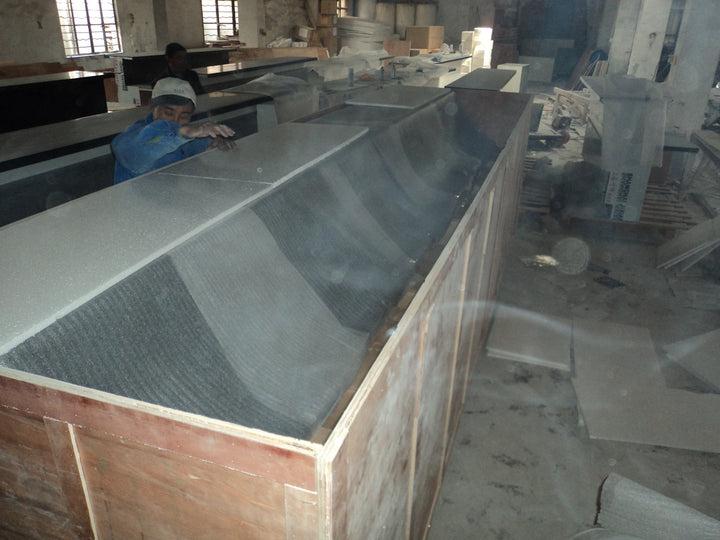

General packing reference, not the selected bank counter shipment.
General workshop reference
03 / MODULE + PROTECTION

Match the split to the route.

Compare packed sizes with site access, visible joints and local assembly. Agree protection for exposed edges and projecting parts.

C07 / PROCUREMENT DECISIONS

Compare the same
furniture package.

A lower total can contain a smaller scope. Put inclusions, provisional items and exclusions beside each offer.

01 / FURNITURE PACKAGE

Name what is included.

Counter units, selected support, fittings, access panels and agreed interface work.

02 / OPEN ITEMS

Separate allowances and alternatives.

Unconfirmed device details, samples, drawing work and proposed material or layout substitutions.

03 / DELIVERY + INSTALLATION

Compare the same destination scope.

Packing, freight, receiving, site joints, local installation and specialist work, as quoted.

Keep device supply separate.

Identify equipment, software, specialist components and commissioning independently. Confirm who supplies, installs and approves each interface rather than assuming it is included with the counter.

Before production, agree the selected configuration, furniture drawing revision, finish and interface schedule. Show product-specific manufacturing evidence only when a matched record is actually available.

C08 / INITIAL REVIEW

Start with a reference.
Review it against the working plan.

Bring the information you have. Mark assumptions and missing supplier details so quotation and approval can address the same scope.

  1. 01

    Selected reference + quantity

    Identify the furniture reference and the task it must support. A photograph does not define the full specification.

  2. 02

    Working plan + equipment

    Position count, target footprint and known device models; mark dimensions and interfaces still open.

  3. 03

    Finish + specialist scope

    Samples or design references; name any required glazing, hardware or equipment supplier.

  4. 04

    Delivery + installation

    Receiving floor, access limits, module connections and the proposed installation scope.

CONFIRM FOR THIS COUNTER

One selected option.
One release revision.

  1. 01

    Working envelope

    Approved footprint, positions, equipment and opening spaces.

  2. 02

    Interfaces + finish

    Device inputs, furniture details and selected sample.

  3. 03

    Scope + assembly

    Included work, exclusions, module split and site responsibility.

  4. 04

    Changes from a prior order

    Record any branch, device or detail difference before repeating the configuration.

C09 / CONFIGURATION REVIEW

Have a counter reference?
Put the working plan beside it.

Send the reference, quantity and available dimensions. Include selected devices and access conditions so the furniture scope can be reviewed against your branch brief.

Send Project DrawingsExplore Bank Furniture Solutions
WHAT THE REVIEW COVERS
  • 01Configuration fit and usable working space
  • 02Equipment, openings and service access
  • 03Included, provisional and excluded scope
  • 04Module split and installation responsibilities
