TOUCHSCREEN EQUIPMENT STAND
Custom Solid Surface Airport Check-In Counter
A defined form. A project-specific specification.

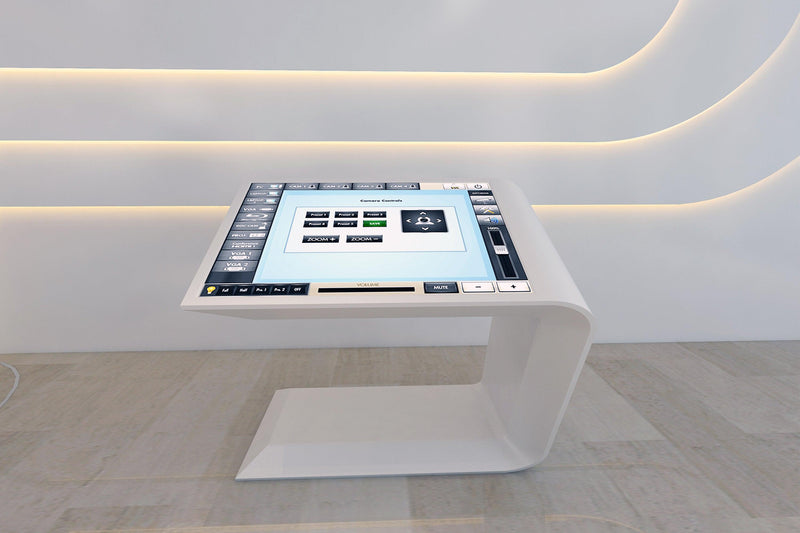

A touchscreen equipment stand with an angled display face and curved solid-surface body. Device function, fit and final specification require project confirmation.

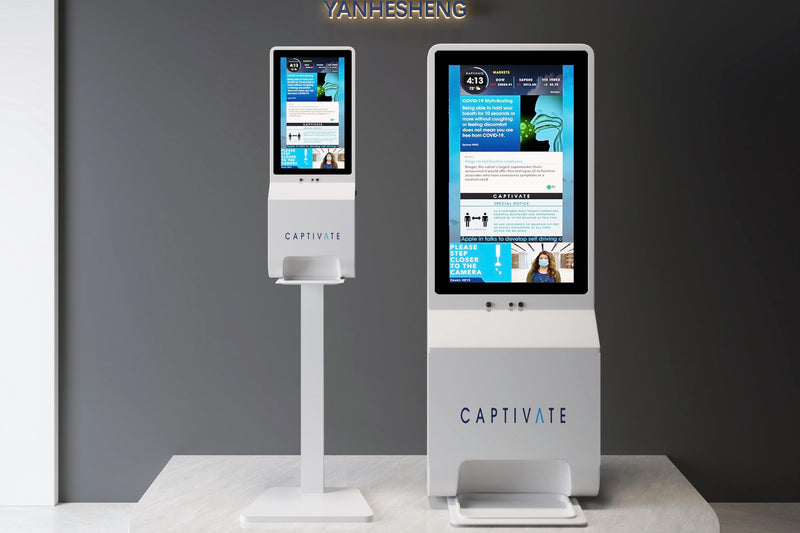

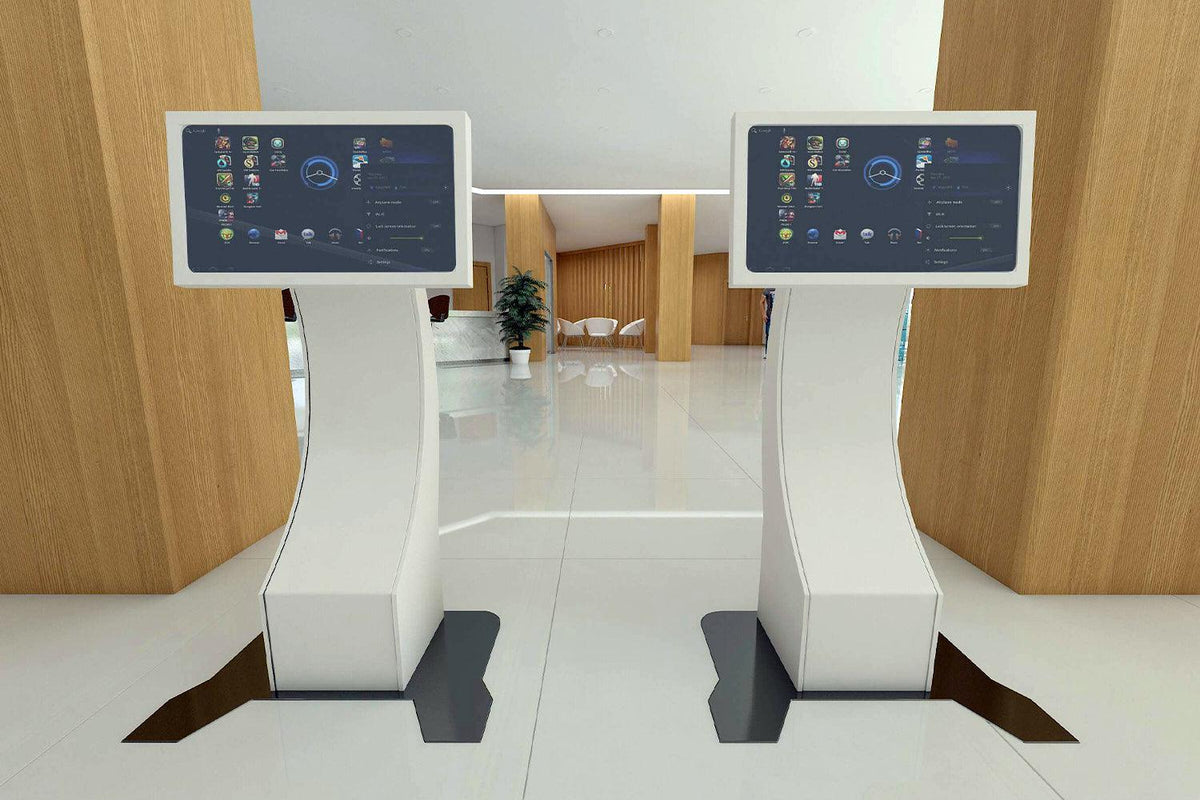

Existing product images; equipment function and final specification remain to be confirmed.
-
Configuration
Touchscreen equipment stand
-
Construction
Curved acrylic solid-surface body
-
Equipment
Device model and function to be confirmed
Custom manufacture to approved drawings.
What stays defined. What follows the project.
VISIBLE PRODUCT FORM
- Angled touchscreen face
- Curved solid-surface body
- Open space below the display
- Broad floor-contact base
CONFIRMED FOR EACH PROJECT
- Intended use
- Overall dimensions
- Device model and function
- Screen position and fixing
- Power / data routes
- Internal support and service access
- Finish / branding
The pictured form is the starting point. Technical details remain to be confirmed.
Confirm the footprint. Check the user space.
Existing product views — not dimensioned drawings.
-
Overall size
Length, depth and height are not yet confirmed.
-
User clearance
Confirm approach space and screen reach for the intended use.
-
Equipment envelope
Confirm screen size, housing depth, ventilation and removal space.
-
Base footprint
Confirm floor contact, stability and fixing requirements.
Length, depth and height remain unconfirmed. An approved product drawing is required for final dimensions.
DEVICE STAND / REVIEW POINTS
Every device needs more than an opening.
Product image with review markers. These are questions to confirm, not verified technical interfaces.
-
Device fit
Confirm the touchscreen model, dimensions and fixing method.
-
Screen position
Confirm screen angle, viewing height and user reach for the intended use.
-
Power + data
Confirm cable entry and routing; internal routes are not shown.
-
Base + fixing
Confirm stability, loads and any required floor fixing.
-
Service access
Confirm device removal and maintenance access; no access panel has been verified.
Equipment function, internal routing, access and fixing are unconfirmed. Equipment supply and installation responsibilities must be agreed for the project.
Specify the build-up. Confirm the interfaces.
CONSTRUCTION TO BE CONFIRMED
-
Acrylic solid surface
Thickness, color, finish and formed details to be confirmed.
-
Internal construction
Substrate and reinforcement have not been verified for this product.
-
Support and fixing
Materials, load requirements and attachment details require project review.
No thickness, substrate grade, frame section or reinforcement specification is confirmed for this product.
Confirm the surface, support and equipment fixing together.
Make the changes explicit.
Eight project choices to review; optional features are not confirmed inclusions.
-
Custom Size & Layout
Confirm the footprint, screen position and user reach.
-
Color Matching
Confirm the sample, sheen and edge treatment together.
-
Curved & Special Shapes
Affects radius, forming and joint positions.
-
Logo Integration
Affects panel construction, fixing and power if illuminated.
-
Optional Lighting
Confirm whether lighting is required and how it will be powered.
-
Cable Management
Affects entry locations and internal routes.
-
Equipment Openings
Affects cut-outs, fixing and removal clearances.
-
Packaging & Shipping
Confirm protection, packed dimensions and site access.
Approve the detail. Keep the record.
The quotation and production release should refer to the same approved information.
-
Dimensioned drawing
Stand geometry, screen opening and device access.
-
Finish approval
Material, color, sheen and edge detail.
-
Interface schedule
Equipment, fixing and access responsibilities.
-
Packing plan
Item identification, packed sizes and handling sequence.
-
Revision reference
Record the approved revision before production release.
For repeat orders, reference the approved revision and confirm every change before the next batch.
Request Technical InformationProduct records to be confirmed
Product-specific drawings, structure details and inspection records are not yet supplied.
View Production Process
Have requirements for this device stand?
Send the information available. We’ll identify what must be confirmed for a quotation.
Illustrative airport setting — not project evidence.
INCLUDE WHAT YOU HAVE
- Intended use, quantity and destination
- Layout or approximate dimensions
- Device model and drawings
- Required delivery schedule
WHAT WE RETURN
- Configuration fit review
- Interface questions to resolve
- Information needed to quote
