Solid Surface Furniture Material and Internal Structure Guide

This technical guide explains a typical acrylic solid surface commercial-furniture construction and the project information used to select it. Typical layers can include a 12 mm acrylic solid surface sheet, an 18–25 mm E0 plywood substrate and a 25 × 25 mm reinforced steel or stainless-steel frame. Actual structure is confirmed according to approved drawings, dimensions, span, equipment and project requirements.

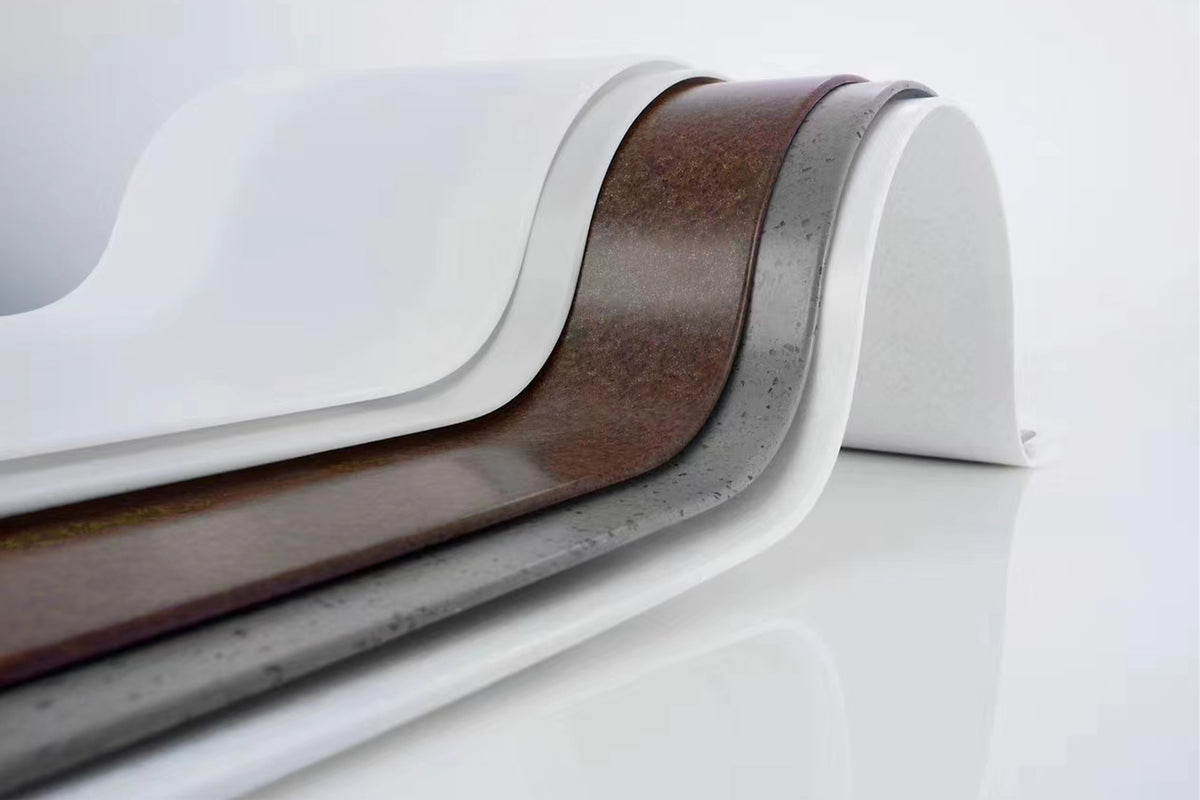

Acrylic solid surface material samples for custom commercial furniture

How is a custom solid surface furniture structure selected?

Custom solid surface furniture structure is selected from the approved drawings, dimensions, span, equipment areas and project requirements. A typical approach can combine a 12 mm acrylic solid surface layer, an 18–25 mm E0 plywood substrate and a 25 × 25 mm reinforced steel or stainless-steel frame. This is an illustrative guide, not a fixed construction or a statement of tested performance.

Who This Technical Guide Is For

For project teams who need a clear, citation-ready explanation of typical construction choices before requesting a custom furniture quote.

Architects and Interior Designers

Review the material and construction questions that should be resolved before a custom furniture design is issued.

Project Procurement Teams

Use the guide to compare what must be confirmed before material, structure and quotation decisions are made.

Fit-Out Contractors

Coordinate dimensions, span, equipment interfaces, access and site installation conditions with the project package.

Project Engineers

Identify the drawing inputs needed to select a suitable construction for the intended furniture use.

Commercial Furniture Applications

The same material family can be configured differently when the use case, dimensions, equipment and site conditions change.

Reception and Service Counters

Custom counter construction is selected around visible finish, service function, internal access and project dimensions.

Airport and Equipment-Integrated Counters

Local reinforcement, equipment openings and maintenance access are coordinated from approved equipment drawings.

Healthcare Service Furniture

Work surfaces, rounded details and staff-workflow interfaces are selected from the approved design and project requirements.

Hotel and Hospitality Counters

Curves, lighting provisions, service equipment openings and modular delivery are confirmed for the individual project.

Typical Construction Reference

The listed dimensions describe an approved typical approach. They are not blanket performance, load or certification claims.

Acrylic solid surface layer
Typical visible surface selection is a 12 mm acrylic solid surface sheet, subject to the approved material and project design.
Plywood substrate
A typical 18–25 mm E0 plywood substrate can support the selected construction where appropriate.
Internal frame and reinforcement
A typical 25 Ă— 25 mm reinforced steel or stainless-steel frame may be incorporated where the design requires it.
Final structure selection
Actual structure is confirmed according to approved drawings, dimensions, span, equipment and project requirements.

Structure Selection Matrix

Review the project variables below before finalizing material layers, internal support, seam positions or equipment-area construction.

Surface layer selection

Confirm color, visual finish, seam approach, edge details and the intended furniture application with the approved project specification.

Long-span considerations

Longer spans and cantilevers may require different internal support; dimensions and intended use must be reviewed before construction is confirmed.

Equipment-area reinforcement

Openings, equipment mounting and service access can change the required internal structure and should be included in the drawing review.

Curved fabrication

Curved forms are assessed from radius, size, finish and internal support requirements rather than assumed from a reference image alone.

Seam and edge finishing

Seam position and edge treatment are planned for the approved design, visual intent and access conditions.

Solid surface and stainless-steel interfaces

Where both materials are specified, interface details are coordinated in the approved drawing; this guide does not claim that one material replaces the other in every use case.

Material and internal structure

Typical Layered Construction

Layered construction can support a refined solid surface finish while accommodating project-specific geometry and equipment interfaces. Confirm the final specification only after drawings and requirements have been approved.

12 mm acrylic solid surface sheet

A typical visible layer for custom commercial furniture, selected according to approved color, finish and project requirements.

18–25 mm E0 plywood substrate

A typical substrate range used when a layered construction is appropriate for the selected design.

25 Ă— 25 mm reinforced metal frame

A typical reinforced steel or stainless-steel frame option where span, equipment or configuration requires internal support.

Approved drawing governs

The construction shown is illustrative. Actual structure is confirmed according to approved drawings, dimensions, span, equipment and project requirements.

Project-Specific Options That Affect Construction

These design choices can affect material selection, internal support, seam planning, equipment interfaces or module division.

Custom Size and Layout

Dimensions and internal supports are selected around the approved furniture geometry.

Color Matching

Visible solid surface color is selected as part of the approved material package.

Curved and Special Shapes

Curved fabrication is reviewed from the approved radius, dimensions and finish requirements.

Logo Integration

Logo details can affect panel layout and are coordinated before manufacturing drawings are approved.

LED Lighting

Lighting provision is coordinated with the approved electrical, access and material plan.

Cable Management

Cable routes and equipment areas are incorporated into the project-specific construction review.

Equipment Openings

Openings and local reinforcement are based on confirmed equipment dimensions and drawings.

Packaging and Shipping

Module division and protection are coordinated when dimensions and delivery conditions require it.

Material and Structure Approval Process

A project-specific structure is confirmed only after the relevant dimensions and requirements are reviewed.

1

Project Requirements

Share intended use, dimensions, quantity, material preference and delivery conditions.

2

Drawing Review

Review the furniture geometry, spans, access and interface requirements.

3

Structure Selection

Select the project-specific construction around approved dimensions, span and equipment.

4

Material and Color Approval

Confirm the visible material and finish selections before production drawings are released.

5

Shop Drawing Approval

Approve seam, edge, opening and structural details before manufacture.

6

Production

Fabrication follows approved drawings and confirmed project requirements.

7

Quality Inspection

Completed pieces are checked against the approved production information.

8

Export Packaging and Delivery

Packing and delivery coordination follow the confirmed project plan.

Material and Internal Structure FAQ

Answers are deliberately limited to verified construction guidance and the conditions that need project confirmation.

What is a typical commercial solid surface furniture construction?

A typical construction can combine a 12 mm acrylic solid surface sheet, an 18–25 mm E0 plywood substrate and a 25 × 25 mm reinforced steel or stainless-steel frame. This is not a universal specification: actual structure is confirmed from approved drawings, dimensions, span, equipment and project requirements.

Is every YHS project built with the same three-layer structure?

No. The guide describes a typical construction approach, not a fixed specification for every project. The required layers, local reinforcement, seams, edge details and module divisions depend on the approved design, intended use, dimensions, span, equipment and delivery conditions. Final construction follows the approved project drawing.

How are long spans or cantilevers considered?

Longer spans and cantilevers should be reviewed from the approved drawing before construction is selected. Their dimensions, intended use, support locations and any equipment openings can affect the internal structure. YHS confirms the project-specific approach during drawing review. No generic span capacity is claimed by this guide.

Do equipment openings require extra reinforcement?

They can. Equipment openings, mounting points, service panels and cable routes may affect the local construction. Provide confirmed equipment drawings and maintenance requirements so YHS can coordinate the relevant area in the shop drawing before production. No single reinforcement detail is assumed for all projects.

How does solid surface compare with stainless steel?

The materials have different visual, fabrication and project-use considerations. A design may use solid surface, stainless steel, or a coordinated interface between them. YHS does not make blanket performance claims here; the selected material approach is confirmed from the approved project specification.

Where can I find performance or certification data?

This guide intentionally does not state unverified fire, temperature, load, water-absorption, density, chemical or certification values. If a project requires specific performance evidence, provide the requirement during inquiry so the relevant verified supplier or project documentation can be reviewed. YHS does not substitute general copy for verified evidence.
