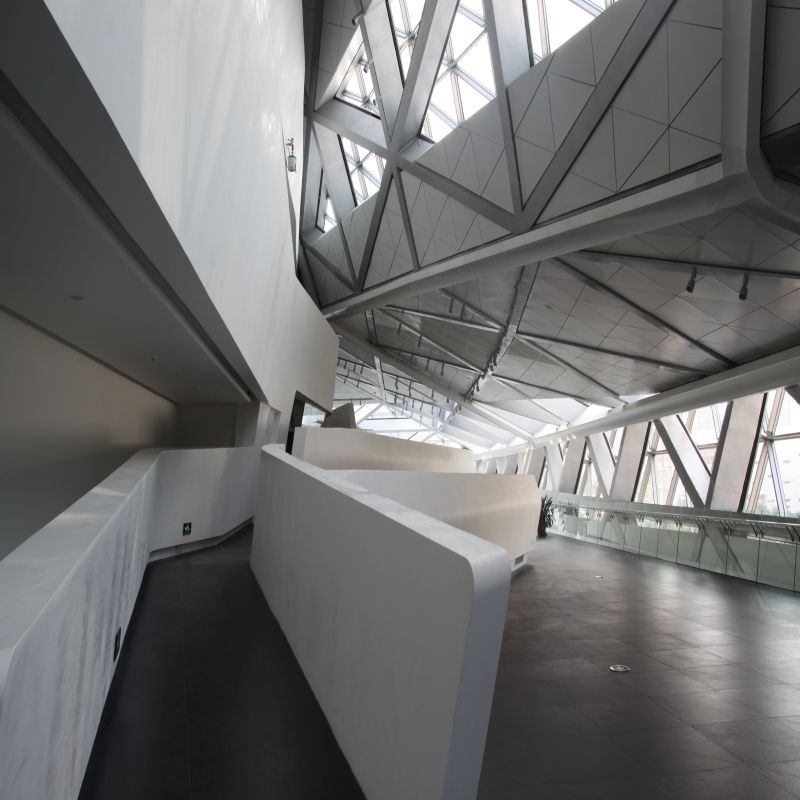

Acrylic Solid Surface can create thin-looking worktops, substantial monolithic edges, soft radiused corners and continuous curved forms. That flexibility can also create ambiguity. A rendering may show a 40 mm visual edge without explaining whether it is a solid 40 mm component, a built-up return, a sheet over substrate or part of a larger fabricated assembly.
For custom Commercial Casework and Custom Millwork, those distinctions affect appearance, fabrication sequence, internal support, equipment openings, joints and inspection. A clear specification therefore needs more than a finish color and a nominal material thickness.
1. Separate Sheet Thickness From Finished Visual Thickness
Start by distinguishing the Acrylic Solid Surface sheet or component thickness from the finished visible thickness of the edge. The two are often different.
A worktop may use a sheet over an approved substrate while presenting a deeper front build-up. A transaction ledge may have a visually substantial edge created through bonded returns rather than a single thick slab.
The Material Specification should identify the approved solid surface reference and nominal material thickness where required. Shop Drawings should separately show the finished visual thickness, build-up geometry and substrate relationship. This prevents a phrase such as “40 mm top” from being interpreted in different ways.
2. Define the Edge Profile as Geometry
Terms such as square edge, eased edge, bevel, bullnose or radius can be interpreted differently. For design-critical edges, use a dimensioned profile rather than a style name alone.
Show the profile in section with the relevant radius, chamfer, projection, return depth and finished thickness. If the same profile repeats across several items, assign it a detail reference. Edge Profiling should also identify which edges are exposed. A guest-facing edge may need a different treatment from a hidden staff-side edge or removable access panel.
3. Coordinate Corner Radii With the Counter Plan
A corner radius changes plan geometry, usable worktop area, substrate layout and the way adjoining panels meet. For exposed corners, state the intended radius on plan and section. If a radius continues vertically through a fascia, confirm whether it is a simple edge treatment, a built-up return or a larger thermoformed element.
Avoid using “rounded corners” as the only instruction. A small eased edge and a large curved end panel are different fabrication conditions.
4. Treat Larger Curves as a Thermoforming Decision
Where a flat surface flows into a larger radius or continuous curved return, Thermoforming may be part of the Solid Surface Fabrication strategy.
Shop Drawings should define radius, tangent points, overall curved length and adjacent seam conditions. The fabricator can then develop Fabrication Drawings around the approved form and relevant material guidance. If a curve is central to the design, an enlarged detail or representative sample can provide a more reliable approval reference than a distant rendering.
5. Protect Edge Geometry Around CNC-Machined Openings
Cable boxes, sinks, equipment apertures and access slots can sit close to visible edges. CNC Machining can control the opening accurately, but the surrounding material still needs coordinated space for the approved profile, support and joint strategy.
Show opening dimensions and centerlines together with the nearest finished edge. If an opening requires a local radius or special edge treatment, identify it separately. Where third-party equipment is involved, release machining only after approved equipment dimensions are available.
6. Coordinate Edge Build-Ups With Seamless Jointing
A visually thick edge may require bonded returns or laminated components. These joints should be planned as part of the Seamless Jointing strategy.
Distinguish factory-bonded joints intended to read as visually continuous from removable joints required for delivery, installation or service. For large counters, review profile continuity across module breaks so the datum and visible thickness align after assembly.
7. Check the Support Behind the Edge
The visible profile does not explain the full assembly. Substrate, internal framing, reinforcement and fixing zones may influence how a worktop projects, how a corner is built or how a curved front is supported.
Commercial Casework drawings should show the relationship between the Acrylic Solid Surface finish and supporting construction. Where project-specific structural or load requirements exist, they should come from the responsible project team and be translated into approved fabrication details.
8. Freeze the Detail Before Production
Before production release, confirm design-critical edge details in the Shop Drawings. For unusual profiles, a full-size section sample may be useful if included in the agreed scope.
The approved detail should then flow into Fabrication Drawings for cutting, bonding, forming, sanding and finishing. If the geometry changes later, issue the revision formally so drawings, quotation and production basis remain aligned.
9. Include Edge Geometry in Pre-Shipment Inspection
Pre-Shipment Inspection can verify visible thickness, corner radii, profile continuity, transitions around openings and module-to-module alignment against approved Shop Drawings or samples.
For unusual profiles, a dimensioned detail or simple template can create a clearer inspection reference than a marketing image.
Why This Matters for Your Project
Edges and corners are small in area but highly visible in commercial interiors. They influence how refined or substantial a counter appears and how adjacent materials and modules meet. Defining them early gives the fabricator a clearer basis for Solid Surface Fabrication and procurement teams a more accurate way to compare supplier scope.
Questions to Ask Your Supplier
- Is the specified thickness actual material thickness or finished built-up thickness?
- Can Shop Drawings show a dimensioned section for every design-critical edge?
- Which corners require Edge Profiling and which require Thermoforming?
- How are CNC-machined openings coordinated with nearby profiles and support?
- Where are factory-bonded seams and removable or site joints?
- What substrate or reinforcement sits behind the visible geometry?
- Can a representative edge sample be provided where needed?
- Which details will be checked during Pre-Shipment Inspection?
Conclusion
Acrylic Solid Surface allows an architectural edge to be shaped far beyond a simple sheet cut, but that freedom works best when the geometry is explicitly documented. Procurement teams should separate material thickness from finished visual thickness, define profiles and radii with dimensions, and coordinate those details with curves, openings, joints and internal construction.
When the same information flows from the Material Specification into Shop Drawings, Fabrication Drawings and Pre-Shipment Inspection, the finished furniture is less dependent on interpretation and easier to review against the approved design.
