Airport check-in counters are often described by overall length, depth and height, but those numbers are only the final result of a larger planning exercise. For a project buyer, consultant or terminal designer, the more useful starting point is the service position: who uses the counter, which passenger interactions happen there, which equipment must be integrated, and which site interfaces the furniture must respect. A dimension that works in one terminal can be unsuitable in another because airline procedures, baggage systems, accessibility requirements, equipment models and available circulation space differ.
This guide explains how to plan airport check-in counter dimensions without treating a catalogue size as a universal standard. It focuses on the information that should be fixed before shop drawings and production.
Key Takeaways
- There is no single universal airport check-in counter size that should be copied into every project.
- Define the number and function of service positions before freezing the overall counter length.
- Operator work zones, passenger interfaces, equipment envelopes, baggage interfaces and maintenance access must be coordinated together.
- Exact equipment models and local accessibility requirements should be confirmed before final cut-outs and heights are approved.
- Production should start only after the terminal layout, elevations, sections, interface points and approved shop drawings agree.
Start With the Service Position, Not the Counter Shell
A service position is the functional module where an operator processes a passenger. It is more useful than starting with a generic cabinet length because it connects furniture dimensions to the actual operating process. The project team should first establish how many positions are required, whether they operate independently or share equipment, and whether the counter interfaces with baggage handling, self-service equipment or adjacent queuing systems.
For early planning, review the terminal plan and identify the passenger approach, operator side, equipment side and required circulation. Then check whether the airline or airport owner has a standard operating brief. YHS can review these inputs against a proposed airport furniture solution before the counter geometry is frozen.

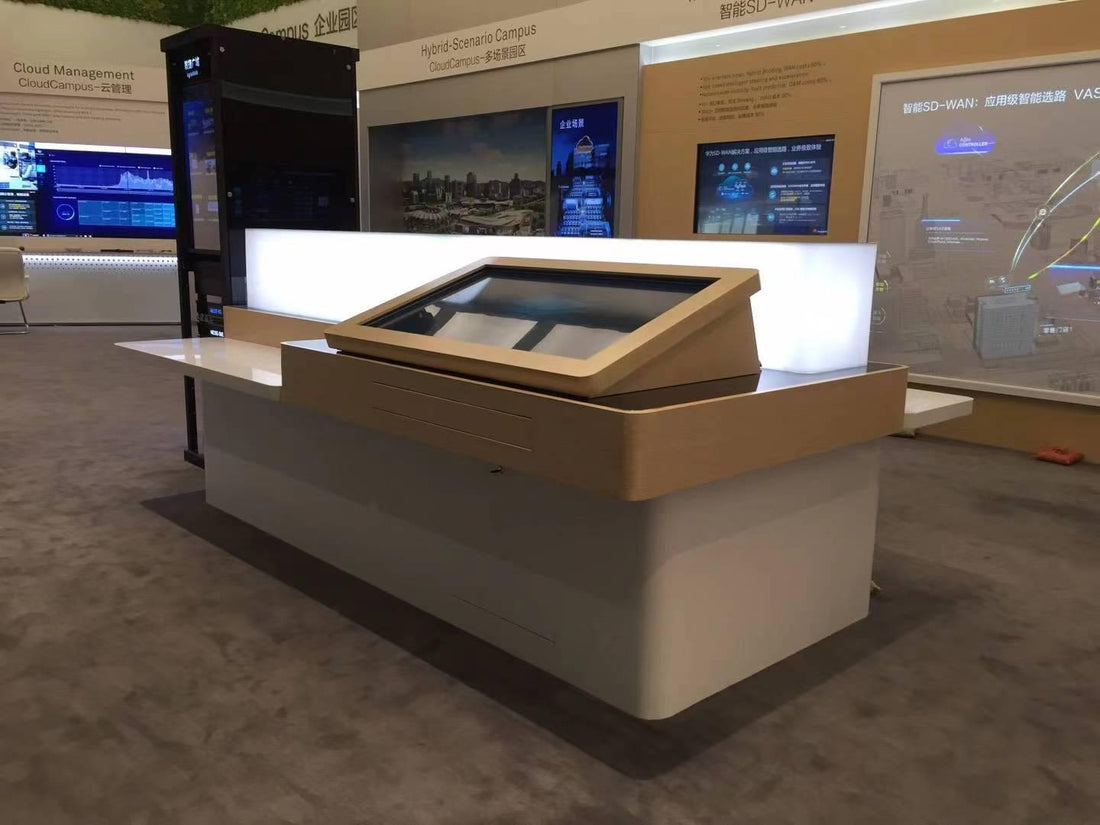

Product reference — not a project-specific terminal installation.
Dimension Planning by Functional Zone
Instead of asking for one “standard size,” divide the counter into functional zones. Each zone has different inputs, and a change in one zone can affect the others.
| Functional zone | What to define | Inputs to confirm |
|---|---|---|
| Passenger interface | Service surface, document handover area and passenger reach | Passenger flow, accessibility brief and terminal standard |
| Operator work zone | Work surface, monitor/keyboard position and seated or standing workflow | Airline SOP, ergonomic brief and operator equipment |
| Equipment zone | Openings, ventilation, cable routes and service access | Exact vendor models, installation envelope and maintenance requirements |
| Baggage interface | Scale, conveyor or side-return relationship where applicable | Baggage system drawings and MEP/interface information |
| Maintenance access | Removable panels, doors and clear access paths | Facility maintenance method and service frequency |
| Module and joint planning | Shipping splits, site joints and alignment points | Delivery route, site access and final setting-out dimensions |
This zone-based method helps the project team see why two counters with a similar appearance may require different depths, lengths or internal arrangements.
Use Reference Dimensions as Inputs, Not Unverified Standards
During concept design, reference dimensions are useful for testing a layout, but they should not be presented as a project requirement unless they come from the owner, consultant, equipment supplier or applicable local standard. Accessibility criteria, passenger reach, clearances and service heights can vary by jurisdiction and airport brief. The same is true for operator ergonomics and equipment spacing.
For procurement, the safest approach is to label early dimensions as “for coordination” until the responsible project parties confirm them. Once confirmed, the values should be carried consistently through the plan, elevation, section and equipment-opening drawings. This reduces the risk of a counter being visually correct while conflicting with terminal operations or installed equipment.
Product reference — not a project-specific terminal installation.
Plan Counter Length Around the Number of Service Positions
The number of service positions is a major driver of overall counter length, but it is not the only one. A project may also need end panels, shared equipment zones, partitions, storage, an accessible service segment, baggage interfaces or transitions to adjacent architectural elements. These items can add length or change where module joints should occur.
For that reason, a buyer should avoid multiplying a nominal module width by the number of operators and treating the result as the final manufacturing size. First map the functional modules, then add the project-specific interfaces and check them against the terminal setting-out plan. The airport check-in counter collection can be used as a visual reference for different configurations, but final dimensions should come from approved project drawings.
Coordinate Equipment Before Freezing Depth and Height
Equipment integration can change both the visible worktop and the internal cabinet. Before approving depth, height or cut-outs, collect the exact model information for monitors, printers, scanners, scales, keyboards, card devices or other specified equipment. Confirm the manufacturer’s installation envelope, ventilation needs, service access, cable direction and any required clearance for replacement.
An opening should not be based only on the face dimensions of a device. The project team should also consider connectors, cable bends, mounting hardware and how maintenance staff will remove the device later. If equipment is not yet selected, show the opening as pending rather than inventing a final size. For a relevant product reference, see the solid surface airport check-in counter with equipment openings.
Product reference — not a project-specific terminal installation.
Site and Manufacturing Checks Before Approval
Before a dimension is released for production, the drawing package should be checked against the actual project interfaces. At minimum, confirm:
- Terminal plan and final setting-out line.
- Finished-floor level and any floor build-up that affects counter height.
- Passenger and operator circulation around the counter.
- Power, data and other MEP connection points.
- Equipment list, exact models and approved cut-out sizes.
- Applicable local accessibility requirements and owner standards.
- Baggage-system, IT and architectural interfaces where relevant.
- Module split and site-joint locations.
- Door, lift and delivery-route limits for finished modules.
- Approved plans, elevations and sections carrying the same revision.
Project teams can use the technical downloads and project resources page when assembling information for drawing review.
A Simple Dimension-Review Workflow
- Mark the counter location on the terminal plan. Establish the passenger side, operator side and adjacent interfaces.
- Create an equipment matrix. List every device, model, opening requirement and service-access need.
- Define service positions. Confirm how many operators are required and which equipment or storage is shared.
- Develop plans, elevations and sections together. Avoid approving only a front elevation, because depth and internal clearance may remain unresolved.
- Run an interface review. Check baggage, power, data, accessibility, circulation and site logistics with the responsible project parties.
- Freeze the approved shop drawings. Production dimensions should follow the approved revision, with later changes formally reviewed before fabrication continues.
Frequently Asked Questions
Is there a standard size for an airport check-in counter?
There is no single universal size that is appropriate for every terminal. Final dimensions should respond to the airport brief, airline workflow, equipment, accessibility requirements, baggage interfaces and site conditions.
How many service positions can one counter include?
That depends on the operating plan, passenger-processing requirement, terminal layout and whether equipment is dedicated or shared. The number of positions should be confirmed before the overall counter length is frozen.
When should equipment openings be finalized?
After the exact equipment model, installation envelope, service access and cable requirements are confirmed, and before the affected parts enter production.
Can overall dimensions be changed during manufacturing?
Changes may be possible, but late changes can affect modules, joints, openings, internal support and site interfaces. The impact should be reviewed against the approved drawings before work continues.
What should a buyer send for a dimension review?
Send the terminal layout, expected number of service positions, equipment list, relevant interface drawings and the project’s accessibility or owner requirements. Clear inputs make the shop-drawing review more reliable.
